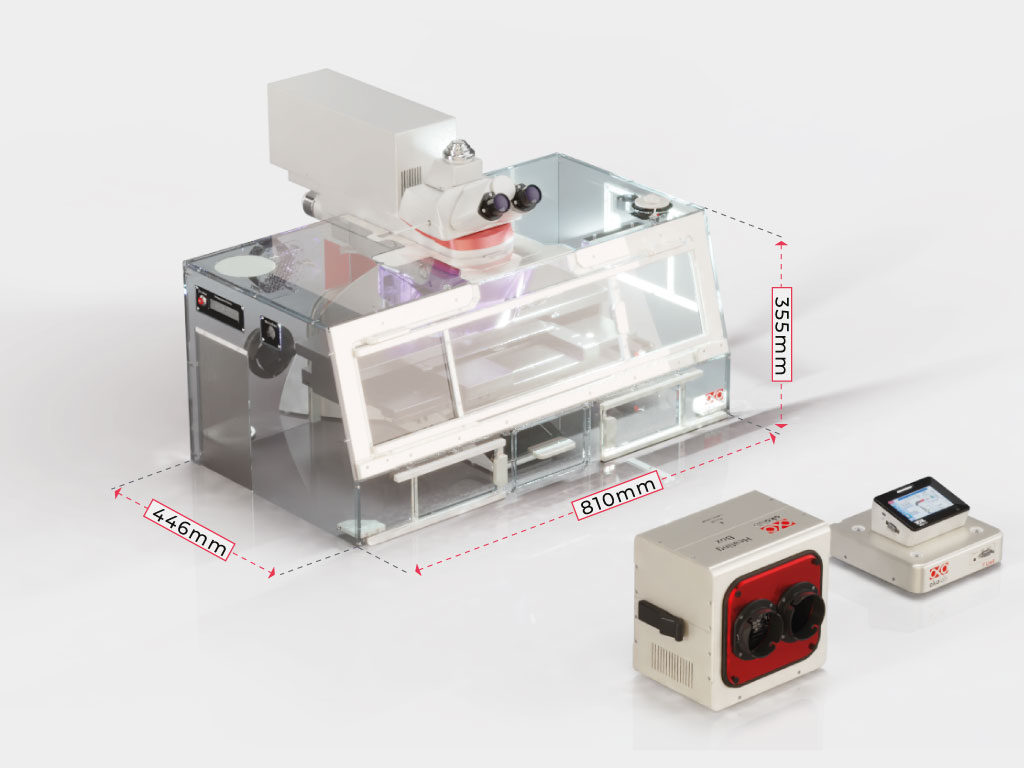

Transparent Enclosure for LMD

H201-ENCLOSURE-LMD

• Front and cover panels can be removed easily and quickly by means of rotating hinges


• Sliding doors allow easy access to the microscope and sample


• Seals and sealed openings allow tubes and cables to be inserted inside the housing


• Dual air inlets and outlets and constant air circulation ensure stable operation of the system and excellent temperature distribution throughout the housing.


• Feedback to the temperature unit can be done either by the sample temperature or by the temperature of the air inside the housing.


• Built in dimmable LED light


• Can be ordered standalone with code: 11533535

H201-T-UNIT-BL

Temperature Unit that generates warm air to raise the temperature inside the enclosure.

• Temperature range: from 3°C above ambient to 42°C


• Temperature accuracy: 0.1°C


• Sample or enclosure feedback operation


• # 3 Temperature sensors: in the enclosure; in the gas chamber; inside the air heater


• # 1 Flow rate sensor inside the air heater

OKO-TOUCH

User-friendly 4.3” touch screen interface of Okolab Controllers.

• Turn Controllers on/off


• Define set point values


• Select sample or enclosure feedback mode


• Set flow rates of gas controllers


• Display all set points and measured parameters


• Run self calibration procedures

H201-ENCLOSURE-LMD

• Front and cover panels can be removed easily and quickly by means of rotating hinges


• Sliding doors allow easy access to the microscope and sample


• Seals and sealed openings allow tubes and cables to be inserted inside the housing


• Dual air inlets and outlets and constant air circulation ensure stable operation of the system and excellent temperature distribution throughout the housing.


• Feedback to the temperature unit can be done either by the sample temperature or by the temperature of the air inside the housing.


• Built in dimmable LED light


• Can be ordered standalone with code: 11533535

H201-T-UNIT-BL

Temperature Unit that generates warm air to raise the temperature inside the enclosure.

• Temperature range: from 3°C above ambient to 42°C


• Temperature accuracy: 0.1°C


• Sample or enclosure feedback operation


• # 3 Temperature sensors: in the enclosure; in the gas chamber; inside the air heater


• # 1 Flow rate sensor inside the air heater

OKO-TOUCH

User-friendly 4.3” touch screen interface of Okolab Controllers.

• Turn Controllers on/off


• Define set point values


• Select sample or enclosure feedback mode


• Set flow rates of gas controllers


• Display all set points and measured parameters


• Run self calibration procedures

CO2-UNIT-BL

• Range: CO2 0-18%


• Accuracy: CO2 ± 0.1%


• Repeatability better than 0.1%


• Sensor type: CO2:  NDIR – 10 year-life


• Output flow rate: 0.0 – 1.0 L/min. Outlet Pressure: ambient


• Combine with HM-ACTIVE of HM-VF for output gas humidity control

OKO-AIR-PUMP-BL

• Plug and play solution for air inlet


• Compatible with Bold Line Digital Gas Controllers


• Convenient alternative to 100% air tanks/compressed air sources


• Air flow rate: 0.4 l /min

HM-ACTIVE

Humidity controller equipped with humidity sensor

• Humidity Range: 50-95%


• Humidity sensor resolution 1%


• Heated Tube prevents condensation between Humidity Module and chamber

H201-LEICA-LMD

Gas chamber for Leica LMD set-up with LMT350 scanning stage

• Compatible with Leica LMD7 stage


• Includes objective top collars that surrounds the objective revolver


• Spring locks hold Petri dishes, in correct position inside the chamber


• Features 6 perfusion openings (up to 2.4 mm in outer diameter)


• Magnets allow easy interchange of specimen holders


• Requires at least one specimen holder


• Recommended Humidity Module: HM-ACTIVE

LMD-1×50-M

• 50mm petri dish holder

LMD-1xGS-M

• 1×3″ chamber slide holder

LMD-1xLGS-M

• 2×3” large slide holder
