T-only UNO+ controller w SuperZ chamber

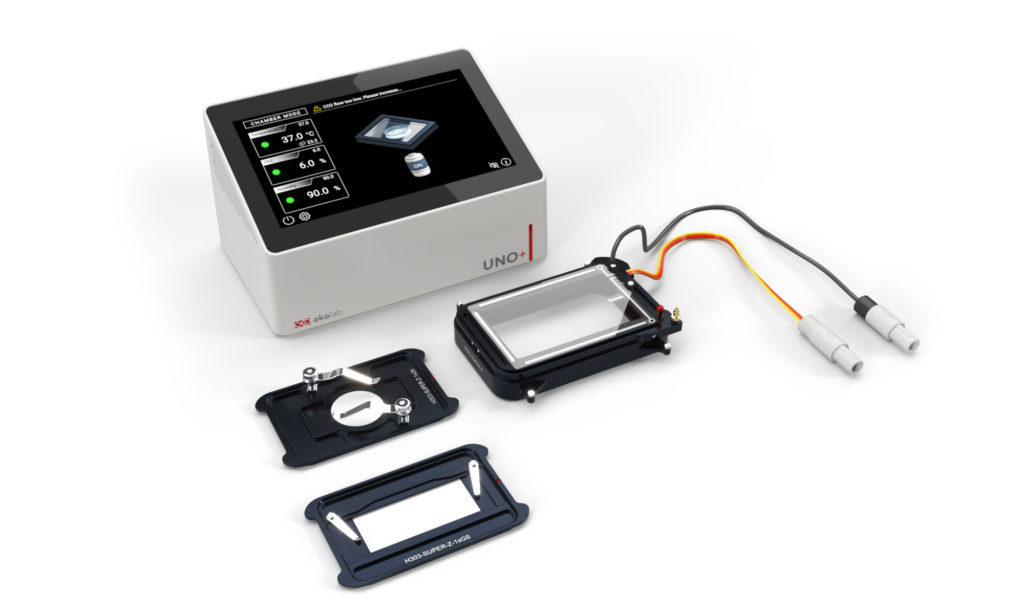

UNO-PLUS T-only set for use on SuperZ galvo.

It includes:

• Temperature only controller with embedded 7.3" touch screen display. Compatible with Okolab Objective Heaters and UNO-PLUS incubating chambers.



Technical Specs

• The thermal controller allows to work both in chamber and in specimen feedback mode.


• T range: 3°C above ambient - 60°C.


• Temperature accuracy is ± 0.1°C in specimen feedback mode and ± 0.3°C in chamber feedback mode, if room temperature remains within ± 1°C.


• The controller is compatible with OBJ-COLLAR series - recommended for immersion objectives. Collars connect directly to the controller and are calibrated with automatic routines.

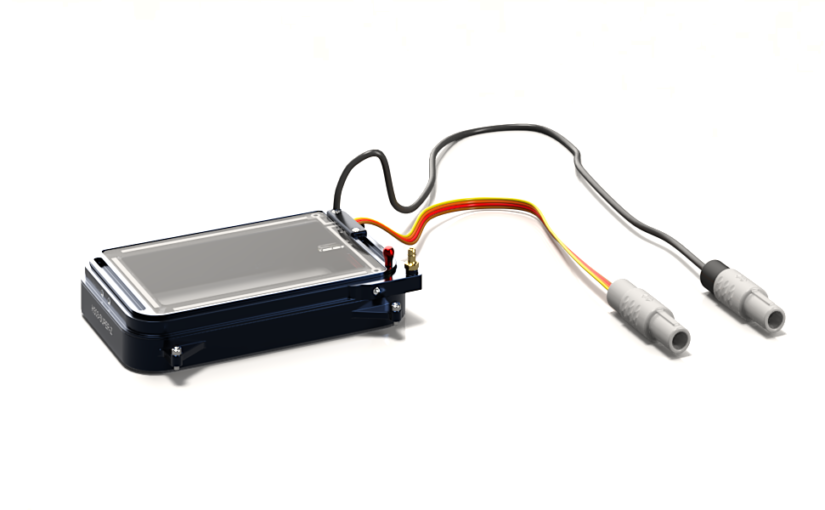

UNO-PLUS Electrically heated chamber for Leica Super Z Galvo Stage.
Electrically heated chamber for Leica Super Z Galvo Stage accepting petri-dishes and chamber slides – it does not accommodate MW plates
It is uniformly heated by means of embedded electric resistances and is covered with a temperature controlled lid. It requires at least one specimen holder.
Total weight UNO-SUPER-Z + H303-SUPER-Z-1x35: 127 g
Perfusion holes: #4, 2.5 mm O.D.
Minimum condenser working distance: 22mm.

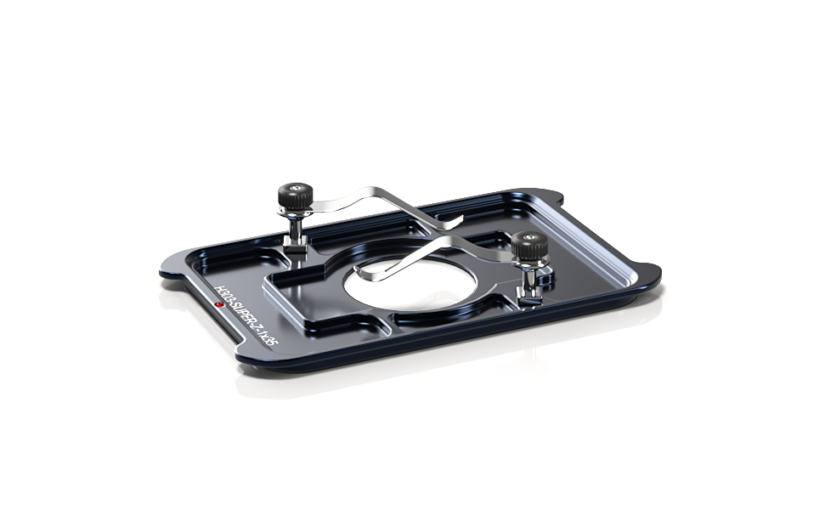

- #1 35mm Petri-dish holder

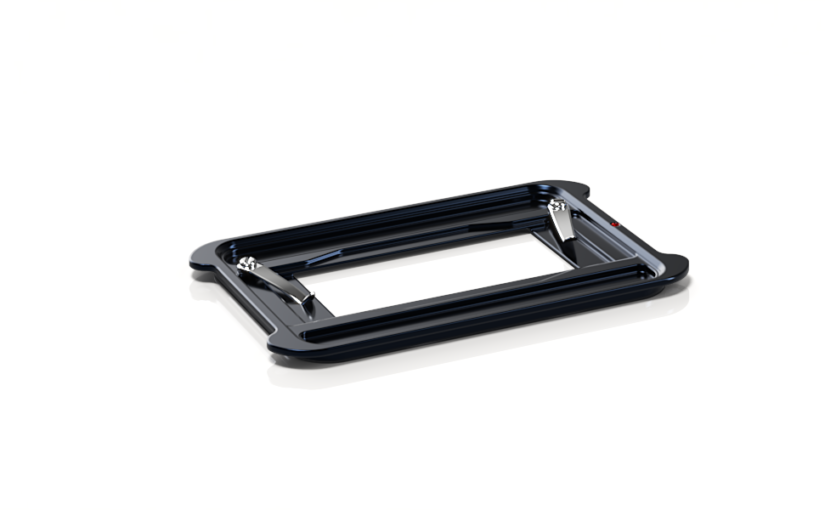

- #1 1”x3” chamber slide holder
