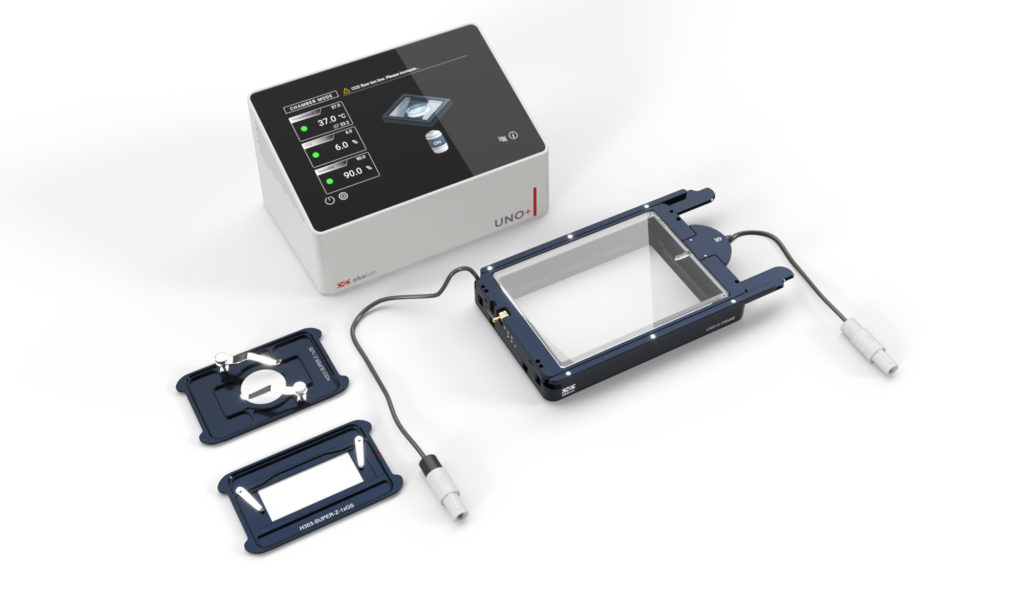

T-only UNO+ controller w K-FRAME chamber
158206098
158206098 - T-only UNO+ controller w K-FRAME chamber
UNO-PLUS T-only set for use on k-frame XY stages.
It includes:
- Temperature controller with embedded 7.3" touch screen display. Compatible with Okolab Objective Heaters and UNO-PLUS incubating chambers.
Technical Specs
The thermal controller allows to work both in chamber and in specimen feedback mode. T range: 3°C above ambient - 60°C. Temperature accuracy is ± 0.1°C in specimen feedback mode and ± 0.3°C in chamber feedback mode, if room temperature remains within ± 1°C. The controller is compatible with OBJ-COLLAR series - recommended for immersion objectives. Collars connect directly to the controller and are calibrated with automatic routines.
- UNO-PLUS Electrically heated chamber for XY stages with k-frame insert (160x110mm) - sliding lid.
The chamber is uniformly heated by means of embedded electric resistances and is covered with a temperature controlled conductive glass lid. It hosts MW plates without addition of any insert. Inserts are available to host Petri, Chambered Slides, Glass Slides, etc.
It hosts MW plates without addition of any insert. Inserts are available to host Petri, Chambered Slides, Glass Slides, etc.
Inserts can be used on XY/Piezo stages even without gas chamber, provided that the XY/piezo stage is equipped with a MW holder, such as K-FRAME-MW-HOLDER.
Perfusion holes: #6, 2.5 mm O.D.
Minimum condenser working distance: 23 mm
- #1 35mm Petri-dish holder - it can also fit into any XY/piezo stage equipped with a holder for multiwell plates
- #1 1”x3” chamber slide holder - it can also fit into any XY/piezo stage equipped with a holder for multiwell plates
It includes:
- Temperature controller with embedded 7.3" touch screen display. Compatible with Okolab Objective Heaters and UNO-PLUS incubating chambers.
Technical Specs
The thermal controller allows to work both in chamber and in specimen feedback mode. T range: 3°C above ambient - 60°C. Temperature accuracy is ± 0.1°C in specimen feedback mode and ± 0.3°C in chamber feedback mode, if room temperature remains within ± 1°C. The controller is compatible with OBJ-COLLAR series - recommended for immersion objectives. Collars connect directly to the controller and are calibrated with automatic routines.
- UNO-PLUS Electrically heated chamber for XY stages with k-frame insert (160x110mm) - sliding lid.
The chamber is uniformly heated by means of embedded electric resistances and is covered with a temperature controlled conductive glass lid. It hosts MW plates without addition of any insert. Inserts are available to host Petri, Chambered Slides, Glass Slides, etc.
It hosts MW plates without addition of any insert. Inserts are available to host Petri, Chambered Slides, Glass Slides, etc.
Inserts can be used on XY/Piezo stages even without gas chamber, provided that the XY/piezo stage is equipped with a MW holder, such as K-FRAME-MW-HOLDER.
Perfusion holes: #6, 2.5 mm O.D.
Minimum condenser working distance: 23 mm
- #1 35mm Petri-dish holder - it can also fit into any XY/piezo stage equipped with a holder for multiwell plates
- #1 1”x3” chamber slide holder - it can also fit into any XY/piezo stage equipped with a holder for multiwell plates
UNO-PLUS-T
Temperature only controller with embedded 7.3″ touch screen display. Compatible with Okolab Objective Heaters and UNO-PLUS incubating chambers.
Technical Specs

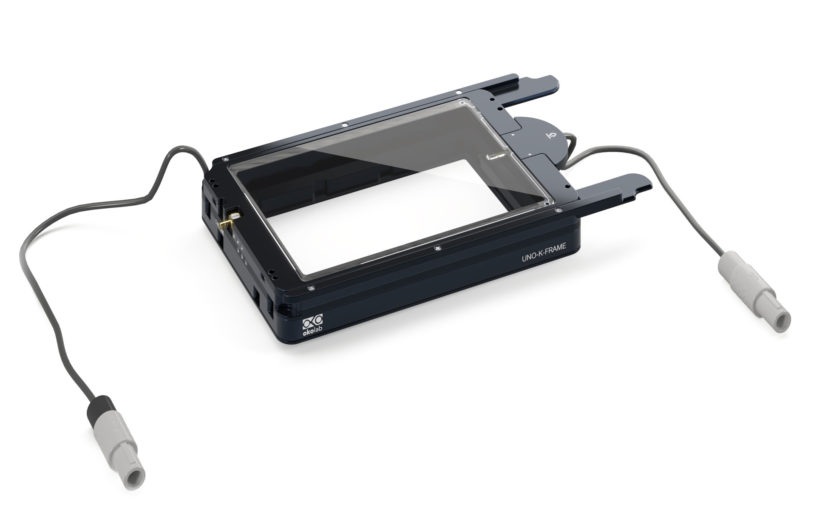

UNO-K-FRAME
– UNO-PLUS Electrically heated chamber for XY stages with k-frame insert (160x110mm) – sliding lid.

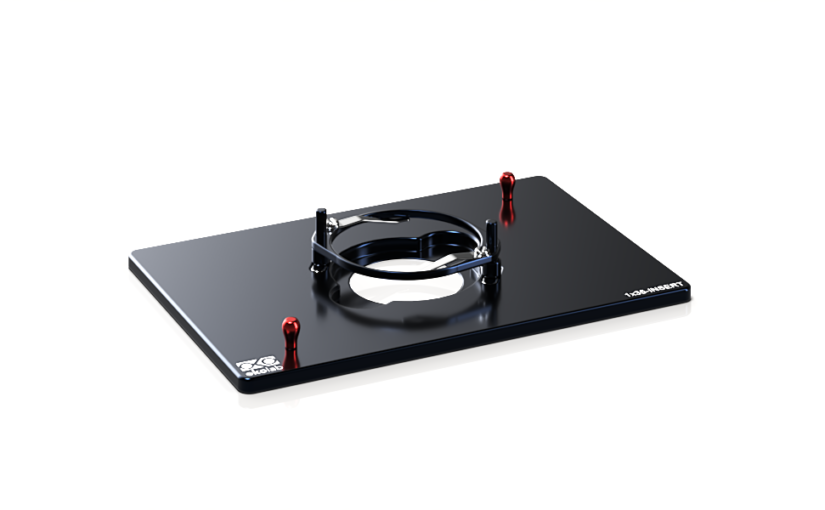

1×35-INSERT
- 35mm petri dish holder
- it can also fit into any XY/piezo stage equipped with a holder for multiwell plates

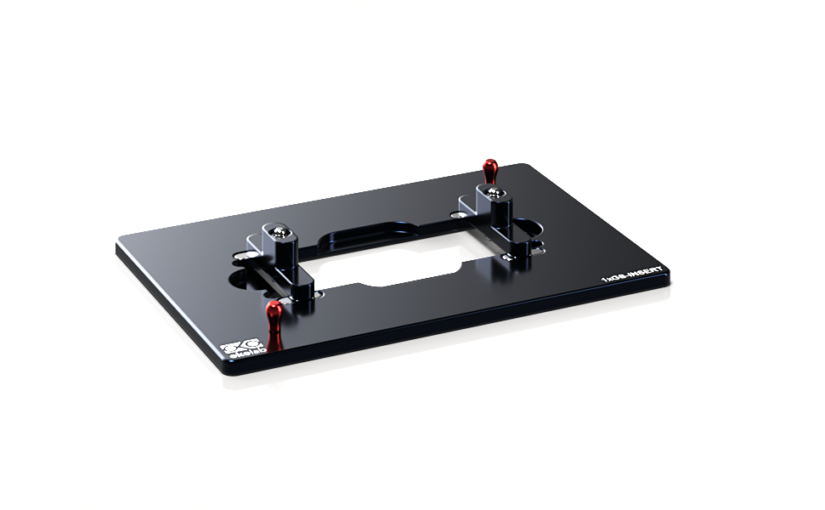

1xGS-INSERT:
- 1”x3” chamber slide holder
- it can also fit into any XY/piezo stage equipped with a holder for multiwell plates
