Laser Safety Box CFS 4TUNE

158206044

158206044 - Laser Safety Box CFS 4TUNE

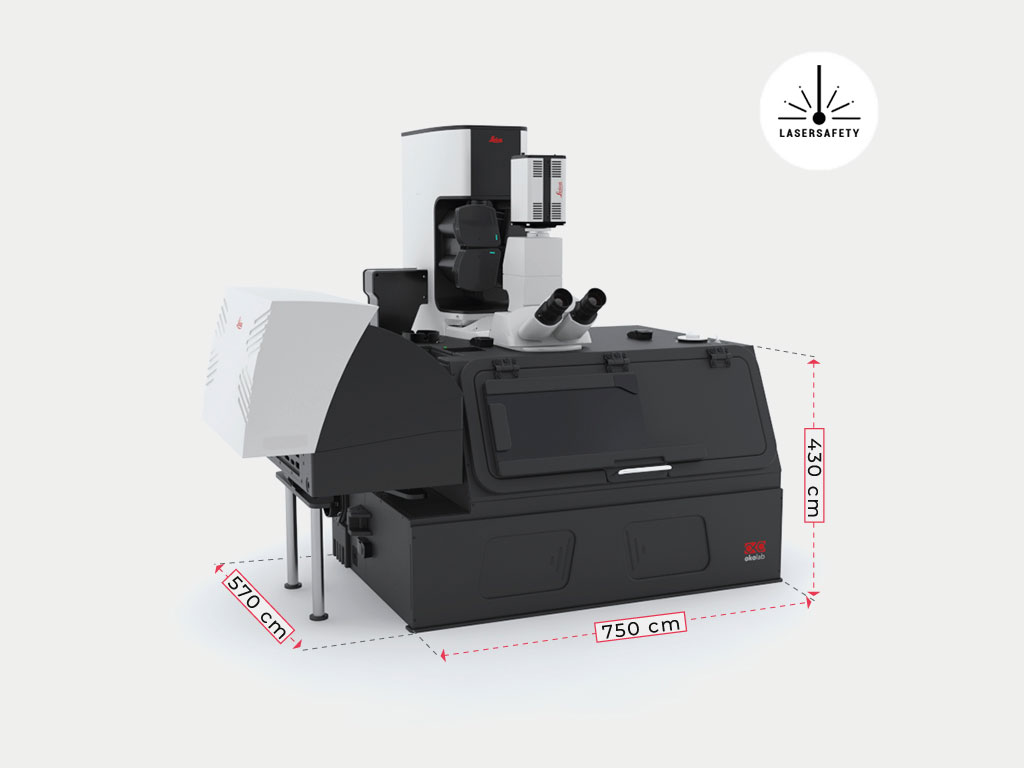

Lasersafe black microscope enclosure for DM6 CFS.

The set consists of:

H201-ENCLOSURE-DM6CFS-LASERSAFE



  • The enclosure is lined with a laser resistant material

  • Automated laser safety switch on all openable parts

  • Dark environment for light sensitive applications

  • Optional Temperature control (158206043)

  • Download compatibility chart


Choose the temperature controller

Temperature controller and User interface for Laser Safety Box 158206044 and 158206045.

The set consists of:

H201-T-UNIT-BL


Temperature Unit that generates warm air to raise the temperature inside the enclosure.



  • Temperature range: from 3°C above ambient to 42°C

  • Temperature accuracy: 0.1°C

  • Sample or enclosure feedback operation

  • # 3 Temperature sensors: in the enclosure; in the gas chamber; inside the air heater

  • # 1 Flow rate sensor inside the air heater


OKO-TOUCH


User-friendly 4.3” touch screen interface of Okolab Controllers.



  • Turn Controllers on/off

  • Define set point values

  • Select sample or enclosure feedback mode

  • Set flow rates of gas controllers

  • Display all set points and measured parameters

  • Run self calibration procedures


Choose the gas controller

Digital CO2 Controller with Air Pump and Active Humidifier.

The set consists of:

CO2-UNIT-BL



  • Range: CO2 0-18%

  • Accuracy: CO2 ± 0.1%

  • Repeatability better than 0.1%

  • Sensor type: CO2:  NDIR – 10 year-life

  • Output flow rate: 0.0 – 1.0 L/min. Outlet Pressure: ambient

  • Combine with HM-ACTIVE of HM-VF for output gas humidity control


HM-ACTIVE


Humidity controller equipped with humidity sensor



  • Humidity Range: 50-95%

  • Humidity sensor resolution 1%

  • Heated Tube prevents condensation between Humidity Module and chamber


OKO-AIR-PUMP-BL



  • Plug and play solution for air inlet

  • Compatible with Bold Line Digital Gas Controllers

  • Convenient alternative to 100% air tanks/compressed air sources

  • Air flow rate: 0.4 l /min


Digital CO2-O2 Controller with Air Pump and Active Humidifier.

The set consists of:

CO2-O2-UNIT-BL [0-10;1-18]



  • Range: CO2 0-10%; O2 1-18% (or Air)

  • Accuracy: CO2± 0.1% @ 5.0%; O2 ± 0.1% @ 5.0%

  • Repeatability: CO2 better than 0.1%; O2 better than 0.1%

  • Sensor type: CO2:  NDIR – 10 year-life; O2: Optical – 5 years lifetime

  • Output flow rate: 0.0 – 1.0 L/min. Outlet Pressure: ambient

  • Combine with HM-ACTIVE of HM-VF for output gas humidity control


HM-ACTIVE


Humidity controller equipped with humidity sensor



  • Humidity Range: 50-95%

  • Humidity sensor resolution 1%

  • Heated Tube prevents condensation between Humidity Module and chamber


OKO-AIR-PUMP-BL



  • Plug and play solution for air inlet

  • Compatible with Bold Line Digital Gas Controllers

  • Convenient alternative to 100% air tanks/compressed air sources

  • Air flow rate: 0.4 l /min


Digital CO2 Hypo-Hyperoxia with Active Humidifier.

The set consists of:

CO2-O2 Unit-BL [0-20;1-95]



  • Range: CO2 0-20%; O2 1-95%

  • Accuracy at 5% CO2 and 5% O2: CO2 ± 0.2%; O2 ± 0.3%

  • Blending mechanism: Digital Flow Meters with CMOS Sensors

  • Output flow rate: 0.2, 0.3 or 0.4 Nl/min, depending on Oxygen set point. Outlet Pressure: ambient

  • Combine with HM-ACTIVE of HM-VF for output gas humidity control


HM-ACTIVE


Humidity controller equipped with humidity sensor



  • Humidity Range: 50-95%

  • Humidity sensor resolution 1%

  • Heated Tube prevents condensation between Humidity Module and chamber


Choose the gas chamber

The set consists of:

H201-UP


Gas chamber for Upright Microscopes



  • XY stage model and serial number must be specified in purchase order

  • Features 12 perfusion openings (diameter 2.0)

  • Magnets allow easy interchange of specimen holders

  • Suitable for dipping lens

  • Manageable chamber thanks to the opening of the lid to introduce the objective

  • Recommended humidity module: HM-ACTIVE


ACCESSORIES

SM-BL



  • Smart Box – Data logger, web server, remote operation via Internet, Tablet or SmartPhone
