DMi8 Enclosure black
158206058
158206058 - DMi8 Enclosure black
H203-ENCLOSURE-DMi8

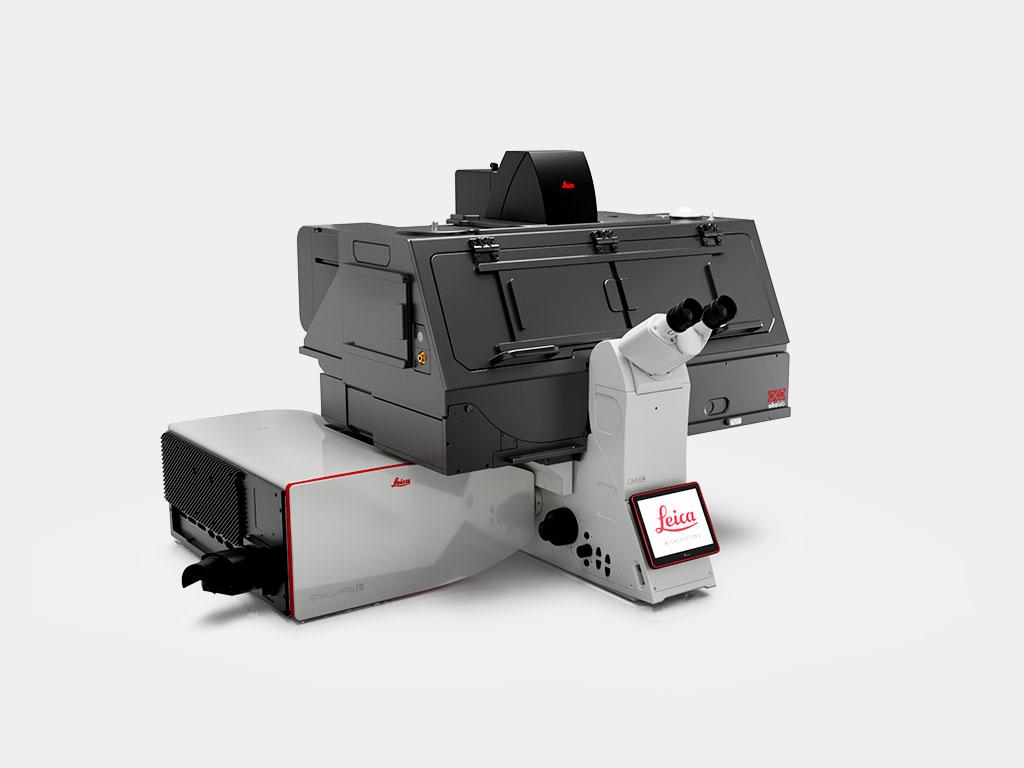

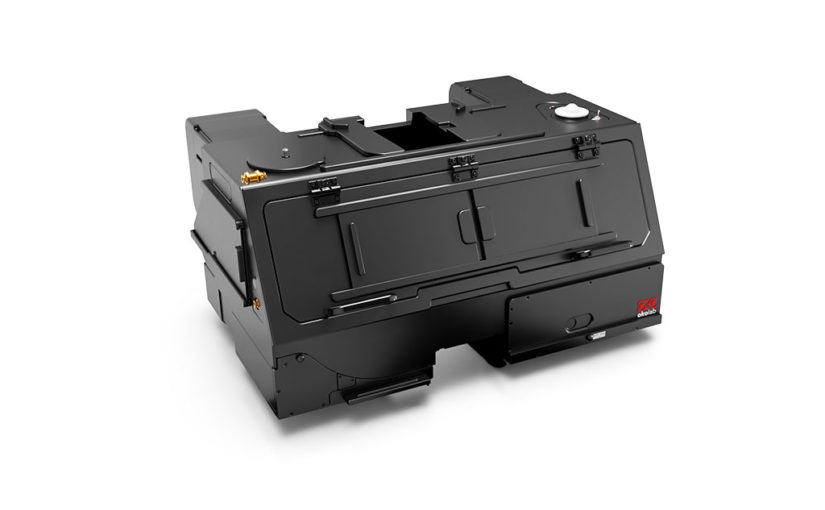

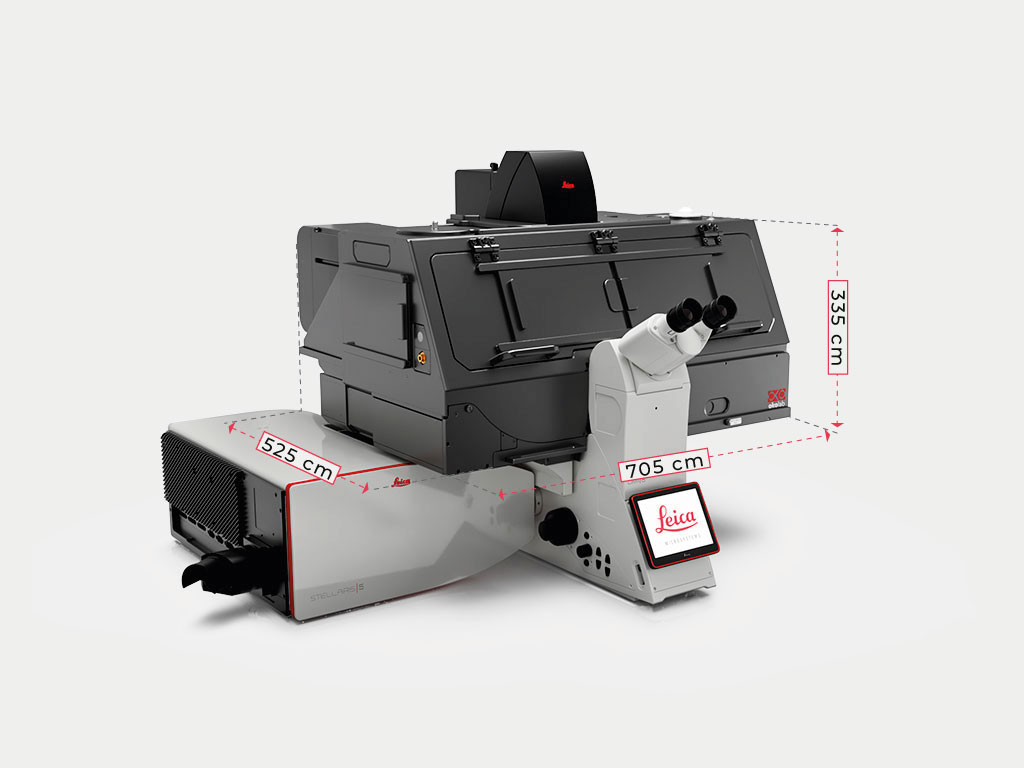

BL3 Black enclosure for DMi8 in which temperature is controlled by recirculating warm air.
- Sliding doors with double layer (dark and transparent) allow viewing of the sample without affecting its temperature and provide access by opening the transparent layer
- Dimmable red/white LED light positioned inside the enclosure allows sample observation in a dark environment
- A tilting front panel provides easy access to the sample and the microscope
Choose the controller
H203-T-H-CO2
Okolab Cage Incubator employs a Temperature and CO2 Control Unit that ensures precise environmental conditions inside the enclosure.
The H203-T-H-CO2 Cage Controller set includes a temperature controller, CO2 controller, air pump, built-in Vibration Free Humidifying Module, user touch screen interface, and USB cable for LASX connection.
- Temperature range: from 3°C above ambient to 45°C
- Temperature accuracy: ± 0.1°C on the sample
- Two ductless heaters for smooth warm air recirculation
- Vibration Free Humidifying Module employing a water-permeable membrane
- CO2 sensor: NDIR dual-wavelength sensor
- CO2 accuracy: ± 0.1%
- CO2 range: 0-20%
- CO2 sensor lifetime: 10 years
- Air pump flow rate: 0.05 – 0.4 l/min, factory set at 0.4 l/min
- Sample or enclosure feedback operation
- Operated via touch screen interface OKO-TOUCH
H203-T-H-CO2-O2[0-21]
Okolab Cage Incubator employs a Temperature, CO2, and O2 Control Unit that ensures precise environmental conditions inside the enclosure.
The H203-T-H-CO2-O2[0-21] Cage Controller set includes a temperature controller, CO2 (0-20%) and O2 (0-21%) controller, air pump, built-in Vibration Free Humidifying Module, user touch screen interface, and USB cable for LASX connection.
- Temperature range: from 3°C above ambient to 45°C
- Temperature accuracy: ± 0.1°C on the sample
- Two ductless heaters for smooth warm air recirculation
- Vibration Free Humidifying Module employing a water-permeable membrane
- CO2 sensor: NDIR dual-wavelength detector
- Oxygen sensor: Optical Oxygen sensor
- CO2 accuracy: ± 0.1%
- CO2 range: 0-20%
- CO2 sensor lifetime: 10 years
- Oxygen accuracy: ± 0.1% at 5% O2
- Oxygen range: 0-21%
- Oxygen sensor lifetime: 5 years
- Oxygen resolution: 0.1%
- Air pump flow rate: 0.2 – 0.4 l/min, factory set at 0.4 l/min
- Sample or enclosure feedback operation
- Operated via touch screen interface OKO-TOUCH
H203-T-H-CO2-O2[0-95]
Okolab Cage Incubator employs a Temperature, CO2, and O2 Control Unit that ensures precise environmental conditions inside the enclosure.
The H203-T-H-CO2-O2[0-95] Cage Controller set includes a temperature controller, CO2 (0-20%) and O2 (0-95%) controller, built-in Vibration Free Humidifying Module, user touch screen interface, and USB cable for LASX connection.
- Temperature range: from 3°C above ambient to 45°C
- Temperature accuracy: ± 0.1°C on the sample
- Two ductless heaters for smooth warm air recirculation
- Vibration Free Humidifying Module employing a water-permeable membrane
- CO2 sensor: NDIR dual-wavelength detector
- Oxygen sensor: Digital mixing of N2, O2, and CO2 using mass flow controllers
- CO2 accuracy: ± 0.1%
- CO2 range: 0-20%
- Oxygen range: 0-95%
- Air pump flow rate: 0.2 – 0.4 l/min, factory set at 0.4 l/min
- Sample or enclosure feedback operation
- Operated via touch screen interface OKO-TOUCH
Choose the gas chamber
H203-K-FRAME
BL3 Gas Chamber for XY Stages with K-Frame Insert (160x110mm) – Sliding Lid
- Sliding lid for easy pipetting
- It hosts MW plates without the addition of any insert
- Inserts can be used on XY/Piezo stages even without the specimen chamber, provided that the XY/Piezo stage is equipped with a MW holder, such as K-FRAME-MW-HOLDER
- A high-precision temperature sensor is embedded in the chamber to provide the best temperature control accuracy on the sample
- Perfusion holes: #12, 2.5 mm O.D.
- Minimum condenser working distance: 23 mm
- It requires at least one specimen holder
GS35-INSERT:
- 1”x3” chamber slide and #2 35mm petri dish holder
- it can also fit into any XY/ stage equipped with a holder for multiwell plates
H203-SUPER-Z
BL3 Gas chamber for for Leica Super Z Galvo Stage.
- It host MW plates without addition of any insert
- A high precision temperature sensor is embedded the chamber to provide the best temperature conterol accuracy on the sample
- Perfusion holes: # 4, 2.5 mm I.D
- Minimum condenser working distance: 26 mm
- Total weight on galvo stage: 80 g
- It requires at least one specimen holder

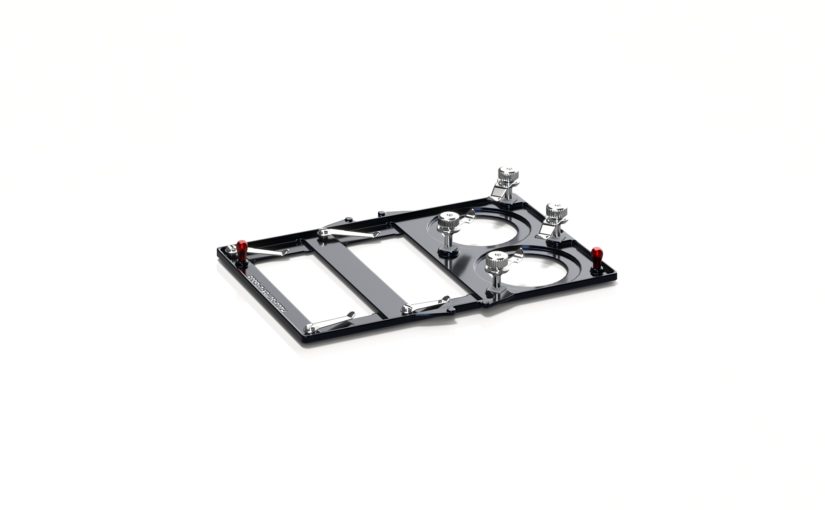

H203-SUPER-Z-GS35:
- #2 1”x3” chamber slides
- #2 35mm petri dish holder
H203-Z-PIEZO
BL3 Gas Chamber for 58204121 Z-Piezo Stage
- It hosts MW plates without the addition of any insert
- A high-precision temperature sensor is embedded in the chamber to provide the best temperature control accuracy on the sample
- Perfusion holes: #6, 2.5 mm O.D.
- Minimum condenser working distance: 23 mm
- It requires at least one specimen holder
GS35-INSERT:
- 1”x3” chamber slide and #2 35mm petri dish holder
- it can also fit into any XY/ stage equipped with a holder for multiwell plates
Add In Chamber Sensor feedback
CO2-H-IN-CHAMBER-SENSOR
In chamber CO2 and Humidity sensor. It provides feedback from the inside of the Okolab BL3 chambers.
- The sensor can be easily added to compatible chambers at any time.
- Sensors lifetime 5 years.
- If used along with the CO2/Hypoxia controller, it also provides a calculation of the O2 level
